Member Price: RM4,499.00
RCP: RM5,319.00
Product Code: TKAS65ZMA
Availability: Out Of Stock

Product Enquiry


  • the healthier new alternative
  • multi functional water supports your life
  • thoroughly filtered, pure, worry free water

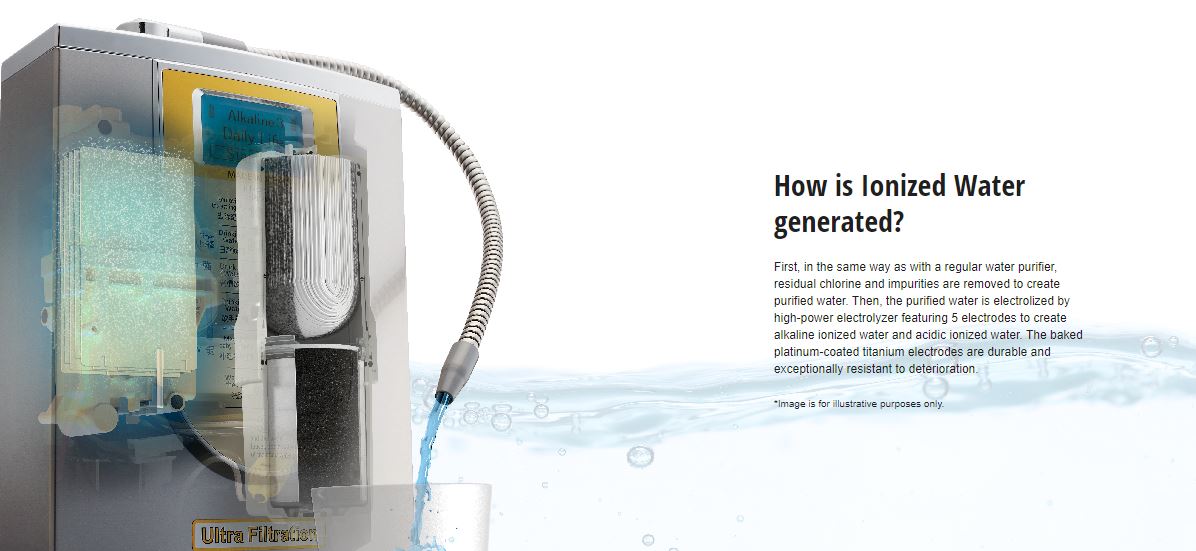

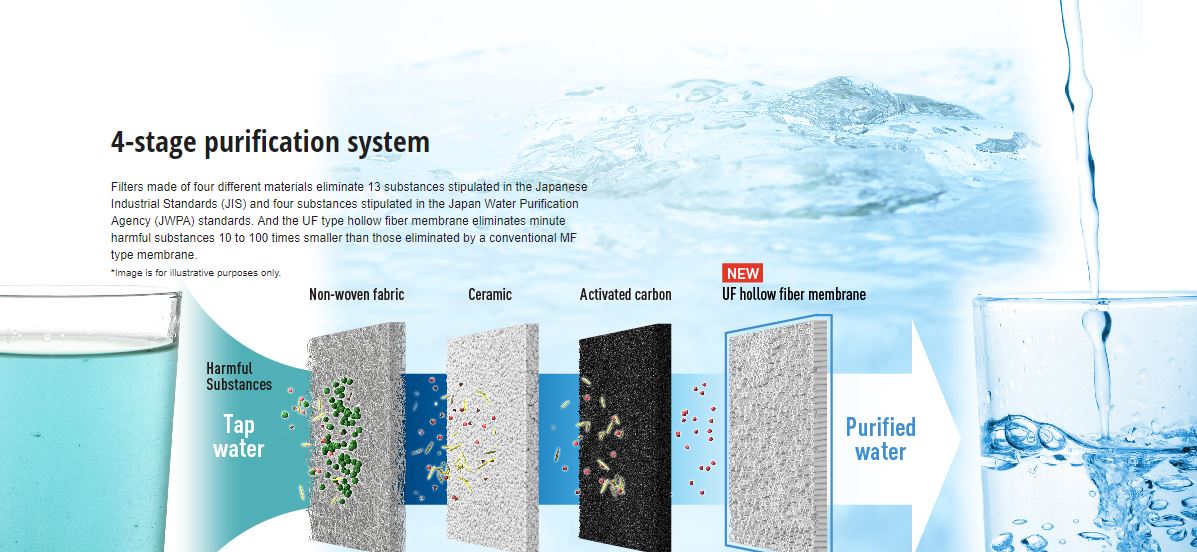

  • 4 stage purification system

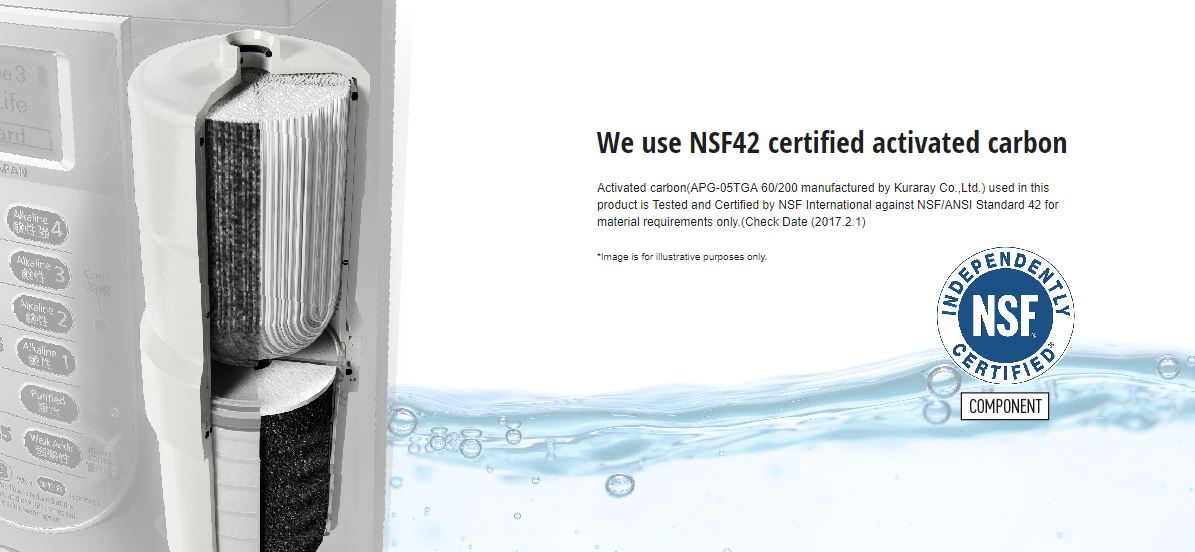

  • NSF42 certified activated carobn
  • JIS & JWPA stipulated substances eliminated
  • for healthier stomach
  • for washing your face
  • alkaline ionized water supports daily cooking effectively

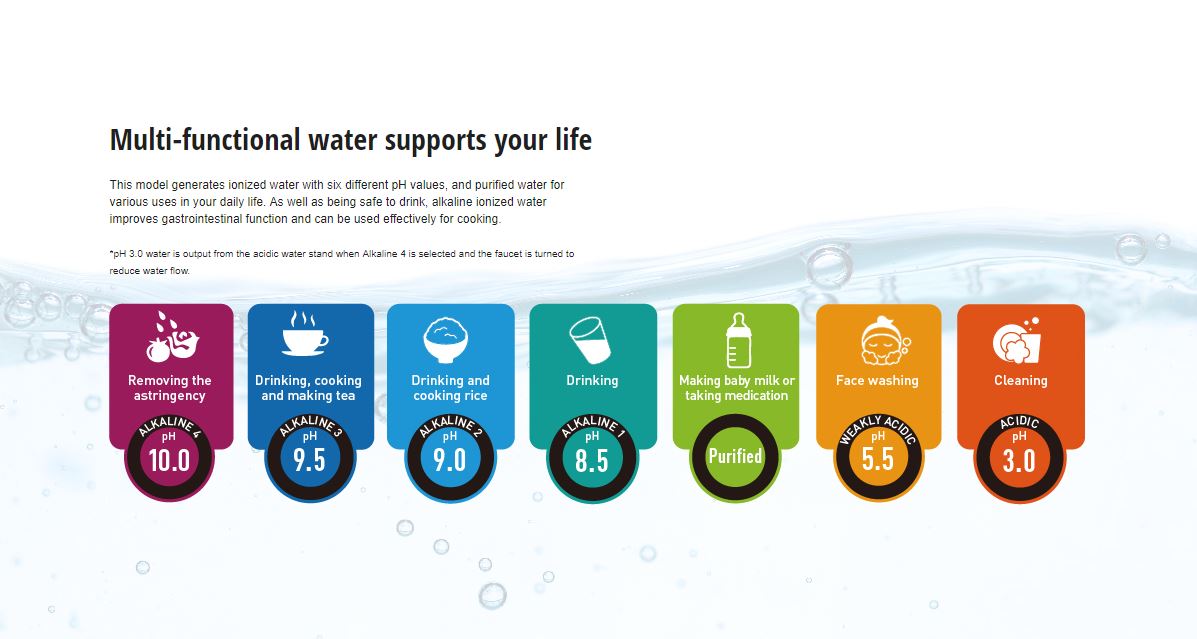

  • generates 7 kinds of water



Rating 220-240 V ~ , 50 Hz, 0.8 A
Power Consumption Approx. 130 W (approx. 1 W during standby)

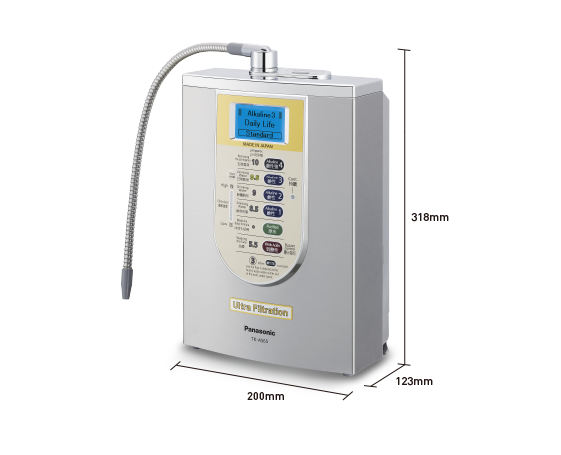

Main Unit Dimensions (WxDxH) Approx. 200 x 123 x 318 mm
Weight Approx. 4.1 kg (approx. 4.6 kg when full of water)
Temperature of Water Used by Alkaline Ionizer Under 35 ℃ (under 80 ℃ for bypass selector)
Pressure of Water Used by Alkaline Ionizer (dynamic pressure) 70 kPa to 350 kPa
Usable Water Service Pressure (static pressure) 70 kPa to 750 kPa
Electrolysis Electrolysis Method Continuous electrolysis
Output Water Volume (flow of water produced) 1.2 L/min. (at 100 kPa water pressure)
Output Water Volume (flow of water produced) 2.5 L/min. (at 200 kPa water pressure)
Electrolysis Capability Selection Alkaline: 4 levels; weak acidic: 2 levels
Continuous Operation Capability Approx. 30 minutes at room temperature (approx. 10 minutes for Stronger at Alkaline 3 (Drinking water in daily life), Alkaline 4 capability (Strongly Alkaline), Weak Acidic) (Note 2)
Electrolyzer Life Approx. 850 hours cumulative (ion water production time, cleaning time only)
Electrolytic Cleaning Auto cleaning method (cleaning time: approx. 35 seconds, waste water drain time: approx. 15 seconds)
Purified Water Output Volume 1.6 L/min. (at 100 kPa water pressure)
Filtration Flow Volume 1.6 L/min. (at 100 kPa water pressure)
Cartridge Installed in the Unit TK-AS65C1-EX
Purification Capacity (Note 1) Free Residual Chlorine 6000 L (Note 3)
Turbidity 6000 L (Note 4)
Total Trihalomethane 6000 L (Note 3)
Chloroform 6000 L (Note 3)
Bromodichloromethane 6000 L (Note 3)
Dibromochloromethane 6000 L (Note 3)
Bromoform 6000 L (Note 3)
Tetrachloroethylene 6000 L (Note 3)
Trichloroethylene 6000 L (Note 3)
1,1,1-Trichloroethane 6000 L (Note 3)
CAT 6000 L (Note 3)
2-MIB (mold smell) 6000 L (Note 3)
Soluble Lead 6000 L (Note 3)
Substances Other than Above that Can be Removed Iron (particulate form) Can be removed (Note 5)
Aluminium (neutral) Can be removed (Note 5)
Geosmin (mold smell) 6000 L (Note 5)
Phenols 6000 L (Note 6)
Guide for Time to Replace Cartridge Approx. 1 year (Note 6)
Filter Material Non-woven fabric, granular activated carbon, ceramic, powdered activated carbon, hollow fi ber membrane
Components which cannot be Filtered Out Iron dissolved in water, heavy metals (silver, copper, etc.), salt (seawater)
Length of Power Cord Approx. 3 m
Power Protection Device Current fuse: 2.5 A
Overheating Protection Devices (inside isolation transformer) Overheating protector (automatic resetting type, activated at temperature of 120 ℃) Thermal fuse (activated at temperature of 145 ℃) × 1
NOTES 1. All figures given are for a water temperature of 20 ℃.
NOTES 2. This product cannot convert hard water into soft water.
NOTES 3. The total volume of water coming out of the main spout, acidic water spout and drain outlet is given as the run through water volume and daily volume of water used.
NOTES (Note 1): The water which can be used as alkaline ion water and weak acidic water is equivalent to about 80% of the filtration flow volume.
NOTES (Note 2): This period may be shorter depending on the water quality and usage environment.
NOTES (Note 3): This value is for a removal rate of 80% based on JIS S 3201 tests.
NOTES (Note 4): This value is for a fi ltration flow volume of 50% based on JIS S 3201 tests.
NOTES (Note 5): This value is for a removal rate of 80% based on specifi cation standard tests (JWPAS B standards) stipulated by the Japan Water Purifier Association (JWPA).
NOTES Note that the removal of iron (particulate form) and aluminum (neutral) are not stipulated as part of purifi cation capacity.
NOTES (Note 6): This period applies when 15 liters of water are used a day. If 30 liters are used a day, the cartridge usage limit will be approximately one-half.
NOTES The period may also be signifi cantly less depending on the amount of water used and on its quality and pressure.
