Panasonic 2.5HP Standard Non-Inverter R32 Air Conditioner | CS-PN24XKH-1

FEATURES

• Powerful Mode lets you enjoy instant powerful cooling
• AEROWINGS delivers faster and further airflow across the room
• Eco-friendly R32 refrigerant provides greater energy and cost-effectiveness at low environmental impact
• 2.5HP high cooling capacity offers fast and powerful cooling for large rooms

OVERVIEW

SPECIFICATIONS

Basic Specification

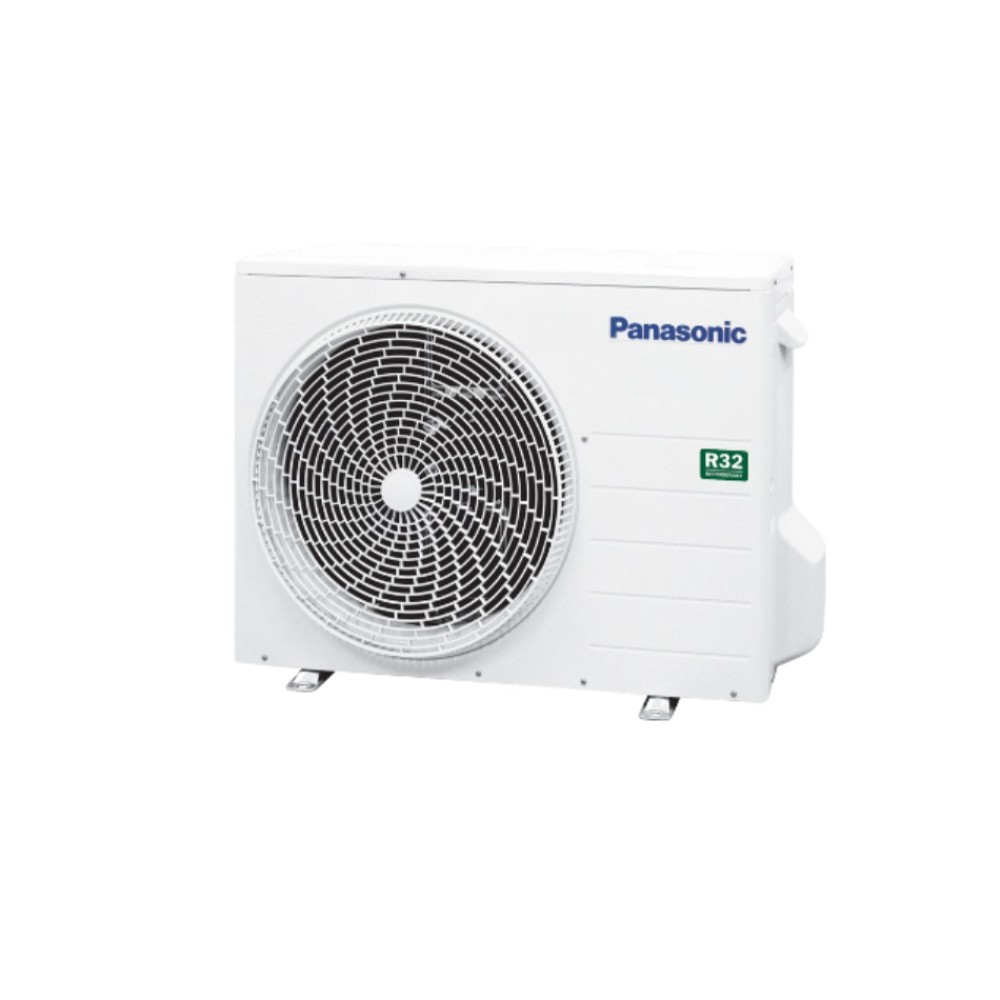

• Model: (Indoor) (50 Hz): CS-PN24XKH-1B ; (Outdoor): CU-PN24XKH-1B
• Cooling Capacity (min-max): 6.85 kW ; 23,400 Btu/h
• EER (min-max): 10.68 Btu/hW ; 3.13 W/W
• CSPF: 3.32 W/W
• Electrical Data: Voltage: 230 V ; Current: 9.7 A
• Power Input (min-max): 2,190 W
• Moisture Removal: 3.9 L/h ; 8.2 Pt/h
• Air Circulation (Indoor): 20.5 m³/min (724 ft³/min) ; (Outdoor): 40.3 m³/min (1,420 ft³/min)
• Noise Level: (Indoor) (H / L / Q-Lo): 47/42 dB(A) ; (Outdoor) (H): 55 dB(A)
• Dimensions (Indoor) Height: 295 mm (11-5/8 inch): Width: 1,040 mm (40-31/32 inch): Depth: 244 mm (9-5/8 inch)
• Dimensions (Outdoor) Height: 619 mm (24-3/8 inch): Width: 824 mm (32-15/32 inch): Depth: 299 mm (11-25/32 inch)
• Net Weight: (Indoor): 12 kg (26 lb) ; (Outdoor): 41 kg (90 lb)
• Refrigerant Pipe Diameter: Liquid Side: ø 6.35 mm (1/4 inch) ; Gas Side: ø 15.88 mm (5/8 inch)
• Pipe Extension: Chargeless Pipe Length: 7.5 m ; Maximum Pipe Length: 30 m ; Maximum Elevation Length: 20 m ; Additional Refrigerant Gas*: 25 g/m
• Power Supply: Indoor

Comfort Features

• Sleep Mode
• Powerful Mode
• Soft Dry Operation Mode
• Quiet Mode
• Airflow Direction Control (Up & Down)
• Manual Horizontal Airflow Direction Control

Cleaner Air Features

• Odour Removing Function
• Removable Washable Panel

Convenience Features

• 24-Hour Dual ON & OFF Real Setting Timer
• LCD Wireless Remote Control
• Wired Remote Control (Optional)

Reliability Features

• Random Auto Restart (32 Restart Patterns)
• Blue Fin Condenser
• Long Piping (max.): 30 m
• Top Panel Maintenance Access

Note

*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
