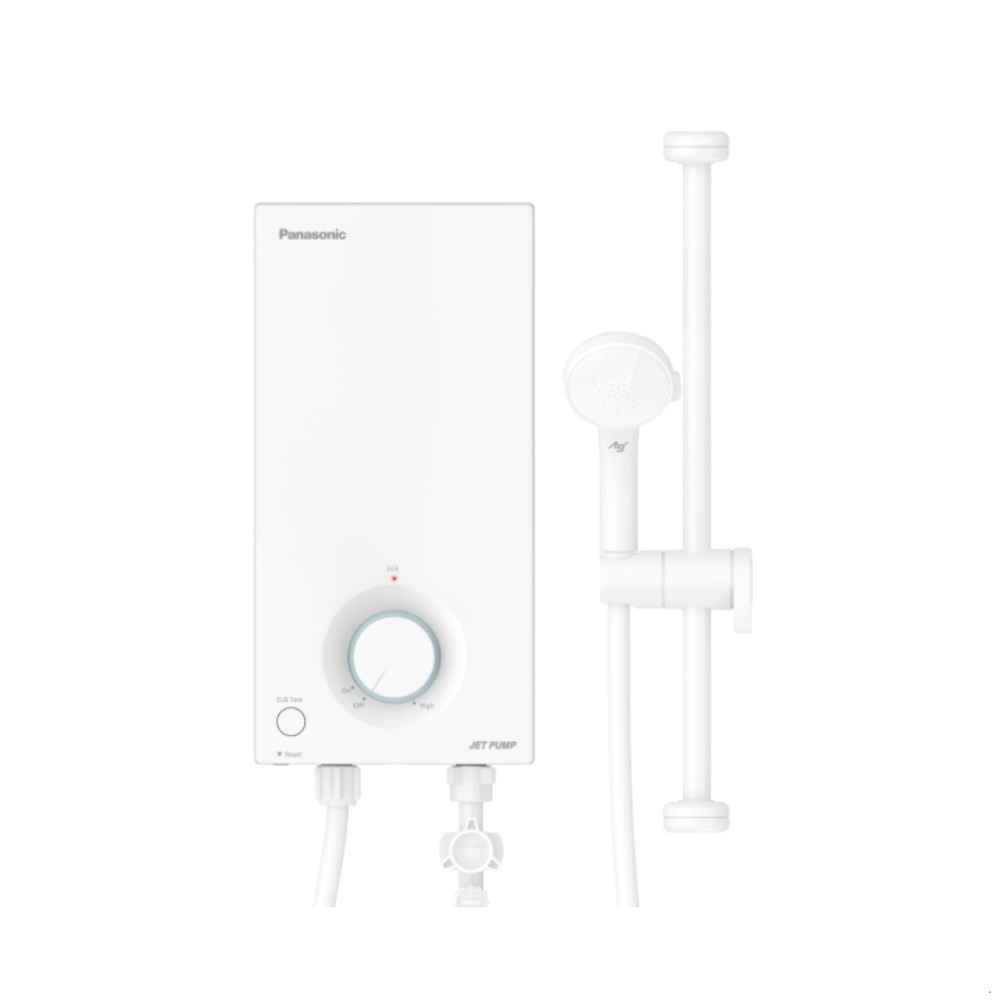

Panasonic V Series Jet Pump Water Heater (DC Pump) | DH-3VP1MW

FEATURES

• Rated Power : 3.6 kW\nPower Supply : 240 V , 50 Hz
• Protects against fire & electrical hazards with 9 safety features

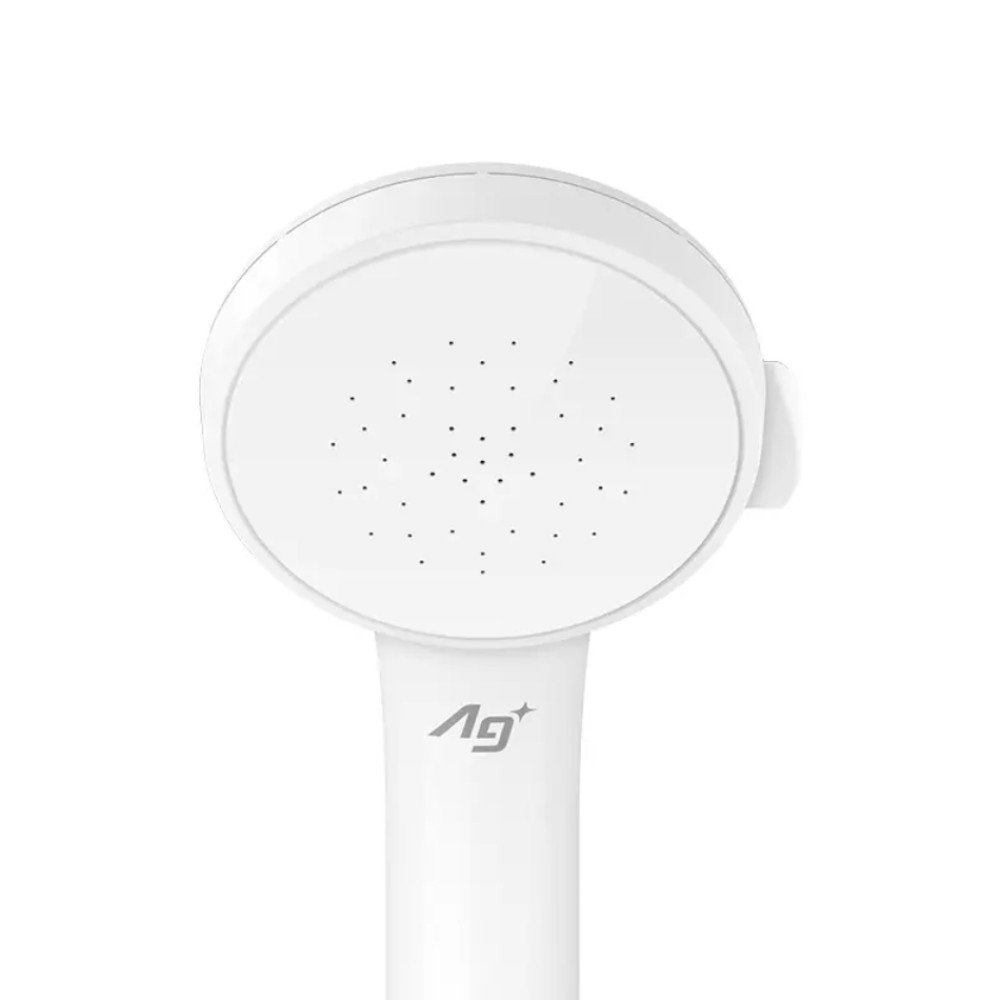

• Protects against bacteria with Ag+ Crystal Material
• Adjustable water texture with 3-way shower head

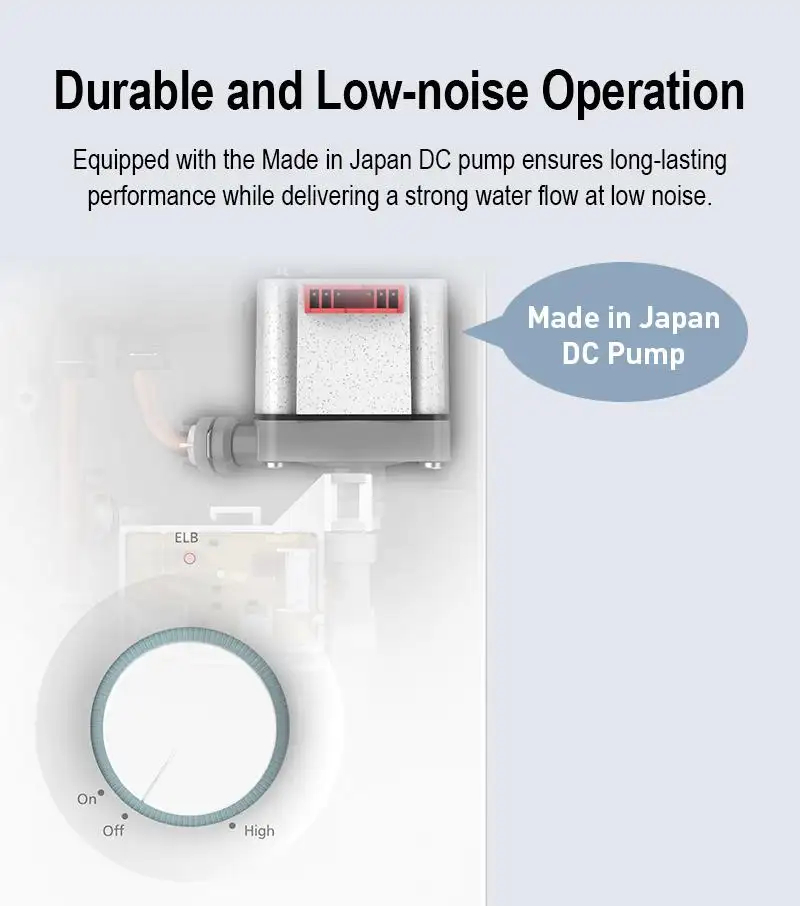

• Strong water flow and low-noise operation with Made In Japan DC Pump

OVERVIEW

SPECIFICATIONS

Basic Specification

• PUMP/ NO PUMP: DC Pump
• TYPE: Non LCD type (Analogue)
• Power Supply: 240 V, 50 Hz
• Rated Power: 3.6 kW
• Water Pressure: Minimum: 0.05 kgf/cm², Maximum: 3.87 kgf/cm²
• Dimensions (h x w x d) mm: 380 x 190 x 82
• Main Unit Weight (kg): 2.51 kg
• Body Colour: Matt White
• Standard Regulation: SURUHANJAYA TENAGA (Safety)

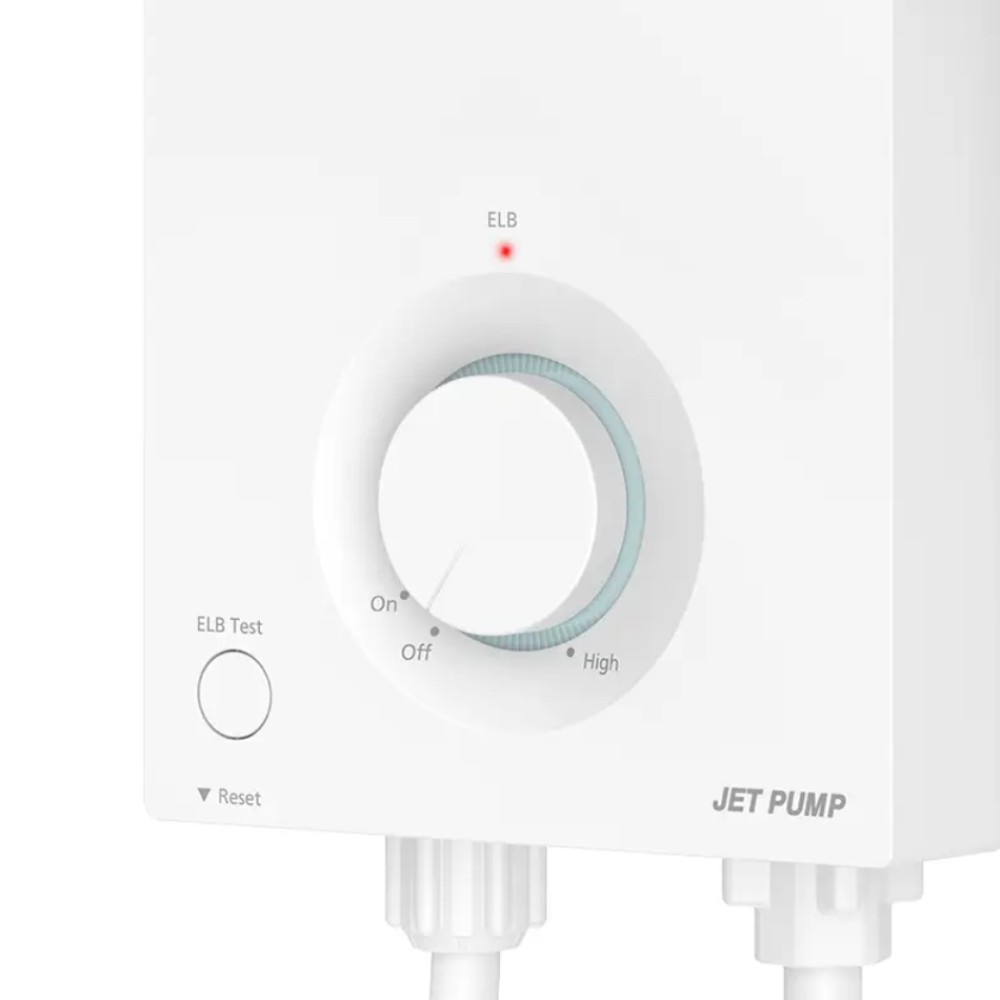

• ELB indication method: Red ELB light
• Water Stop System: On/Off Rotary Switch

9 Safety Features

• 1. Water Splash Prood Case Cover: IEC 60529 (IP25)
• 2. Durable Copper Heater Unit: Plastic Tank
• 3. On Push On/Off Switch: On/Off Rotary Switch
• 4. Insulated Structure: IEC 60529 (IP25)
• 5. Built-in Earth Leakage Breaker (ELB): Yes
• 6. Water Flow Sensor: Yes
• 7. Non-flammable Material Cover: Yes
• 8. Manual Reset Thermostat: Yes
• 9. Auto Thermal Cut-off: 55ºC

Comfort Features

• U-memory: N/A
• U-mode: N/A
• On/Off Pump function: N/A
• Ag+ Antibacterial material: Yes
• 3-way Shower: Normal, Wide, Spot
