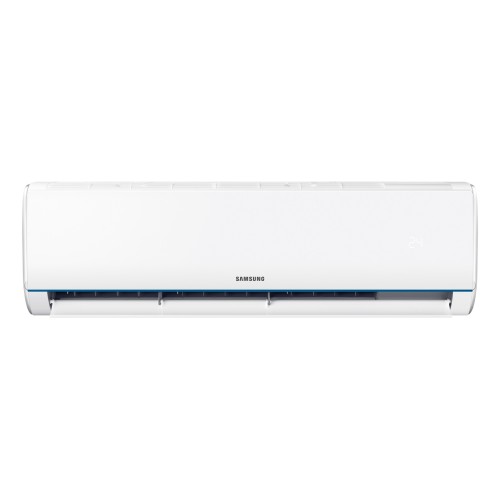

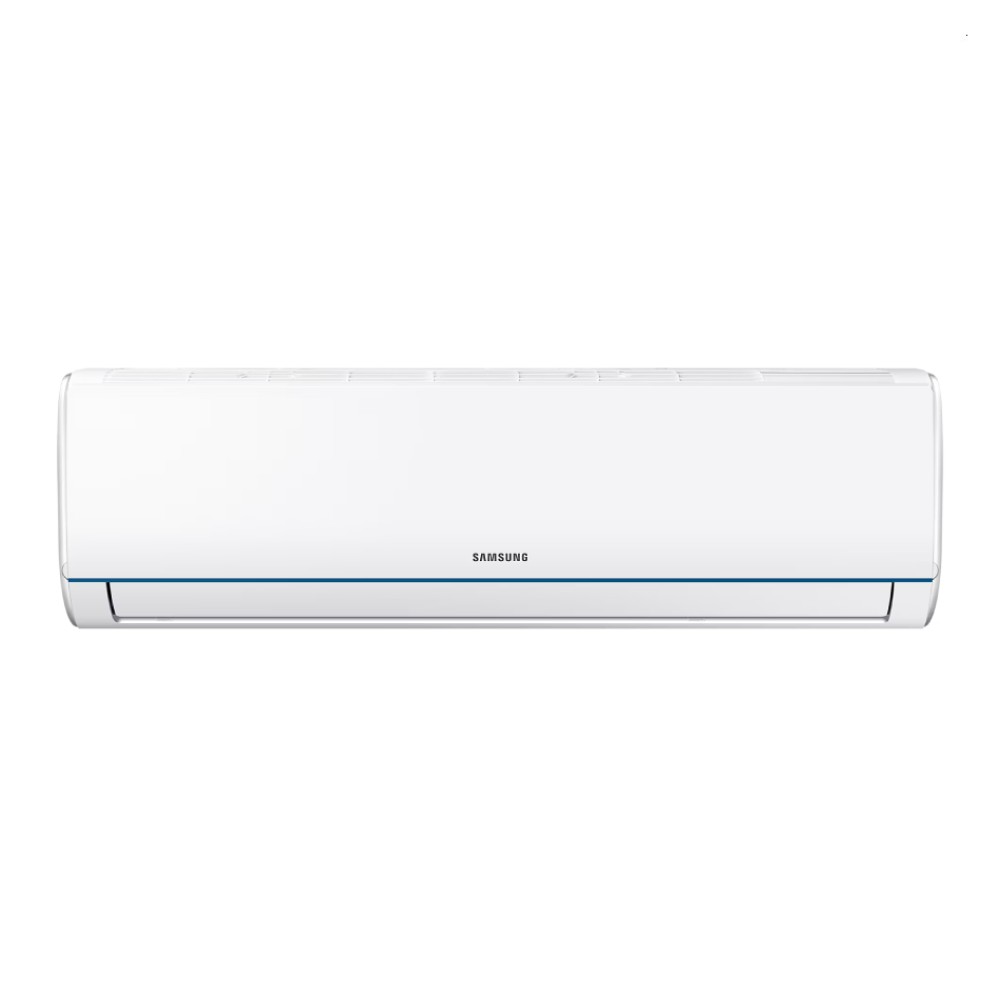

Samsung 1.5HP S-Essential R32 Air Conditioner (2023) | F-AR12BGHQABU

Member Price: RM1,259.00
RCP: RM1,799.00
Product Code: AR12BGHQABUNME
Availability: In Stock

Available Options

Product Enquiry


  • Fast Cooling: Cool room rapidly and effectively
  • HD Filter: Effective at capturing dust, airborne contaminants and allergens
  • Good Sleep Mode: Creates the desirable climate for a good night’s sleep
  • 2-Way Auto Swing
  • DuraFin+
  • R32 Refrigerant
  • Dehumidification
  • Energy Star Rating: 3 Star


Cools you faster

Fast Cooling

Cool a whole room rapidly and effectively. Fast Cooling mode operates with the fastest fan speed, before slowing down. So it cools or heats much faster compared to the normal mode* and reaches the desired temperature in the shortest time. It’s ideal for immediate relief from the heat outside.

Cools you faster

Breathe purer air

HD Filter

Make sure that the air you breathe is always clean and fresh. The HD Filter is really effective at capturing dust, airborne contaminants and allergens, such as pollen, mold spores and pet dander. And it’s also washable, so all you need to do is give it a quick rinse in water and then reuse it.

Breathe purer air

Enjoy a good sleep

Good Sleep

Enjoy a great night’s sleep – every night! Good Sleep mode automatically controls and fine-tunes the temperature to create the ideal conditions for each stage of the sleep cycle. So you gain precious minutes of sleep and feel fully refreshed. And it also uses less energy than normal cooling.

Enjoy a good sleep

Cools every corner

2-Way Auto Swing

Create a comfortable environment with an even temperature in every corner. The 2-Way Auto Swing function automatically controls the air flow direction, so it’s quickly and evenly distributed across the room. It can expel cool or warm air further and in every direction to ensure maximum comfort.

Cools every corner

Long-lasting cooling


Stay comfortably cool for much longer. The DuraFin+ is made of corrosion-resistant material to protect the condenser from rusting, which helps to maintain the optimal performance of the Heat Exchanger. Its superb corrosion-resistance was proven using the Salt Spray Test (SST) for 480 hours*.

Long-lasting cooling

* Tested on the AR12TXFCAWKNEU, AR13TYHYAWKNST model.



  • Capacity (Cooling, Btu/hr): 11500 Btu/hr
  • Capacity (Cooling, kW): 3.370 kW

Energy Efficiency

  • SEER(W/W, Energy Label): 3.40
  • SEER(Btu/hW): 11.60
  • EER (Cooling, W/W): 3.20 W/W
  • EER (Cooling, Btu/hW): 10.92 Btu/hW
  • Energy Star Rating (Cooling): 3 Star

Noise Level

  • Noise Level (Indoor, High/Low, dBA): 44/32 dBA
  • Noise Level (Outdoor, High/Low, dBA): 54 dBA

Electrical Data

  • Power Source(Φ/V/Hz): 1 / 220-240 / 50
  • Power Consumption(Cooling, W): 1053 W
  • Operating Current(Cooling, A): 4.67 A

Physical specification

  • Gross Dimension (Indoor, WxHxD): 870x365x270 mm
  • Gross Dimension (Outdoor, WxHxD): 887x610x337 mm
  • Net Dimension (Indoor, WxHxD): 805x285x194 mm
  • Net Dimension (Outdoor, WxHxD): 765x555x303 mm
  • Gross Weight (Indoor, kg): 11.1 kg
  • Gross Weight (Outdoor, kg): 29.4 kg
  • Net Weight (Indoor, kg): 9.1 kg
  • Net Weight (Outdoor, kg): 27.0 kg
  • Loading Quantity (20/40/40Hft without Pipe): 108/224/250

Technical Information

  • Piping Length (Max, m): 20 m
  • Piping Height (Max, m): 8 m
  • SVC Valve (Liquid (ODxL)): 6.35
  • SVC Valve (Gas (ODxL)): 9.52
  • Moisture Removal (l/hr): 0.73 l/hr
  • Air Circulation (Cooling, ㎥/min): 560 ㎥/min
  • Refrigerant (Type): R32
  • Low Ambient (Cooling, ℃): 18~43 ℃
  • Outdoor Unit (Compressor Type): ROTARY

Air Flow

  • Air Direction Control (Up/Down): Auto
  • Air Direction Control (Left/Right): Manual
  • Air Flow Control Step (Cool/Fan): 4 / 4 *New

Air Purification

  • PM 1.0 Filter: No
  • Tri Care Filter: No
  • Easy Filter Plus (Anti-Bacteria): No
  • Auto Clean (Self Cleaning): No


  • SmartThings: No
  • AI Auto Cooling: No
  • Motion Detect Sensor: No
  • Freeze Wash: No
  • Filter Cleaning Indicatior: No
  • Indoor Temp. Display: Yes
  • Display On/Off: Yes
  • Beep On/Off: No
  • 24-Hour Timer: Yes
  • Auto Changeover: No
  • Auto Restart: Yes

Operating Mode

  • Auto Mode: Yes
  • Fast Cool: Yes
  • Good Sleep: Yes
  • Dehumidification: Yes
  • Fan Mode: Yes
  • Quiet: No


  • WiFi Embedded: No

App Connectivity

  • SmartThings App Support: No
A/C Category Wall Mounted
A/C Type Non Inverter
H/P 1.0 - 1.5
