Panasonic 1.5HP Standard Inverter PU Series R32 Air Conditioner | CS-PU12AKH-1

Different

• CS-PU*A series 4 star to 5 star
• 2.0HP Small Indoor upgrade to Big Indoor

FEATURES

• Manage your air conditioner using your mobile device
• Powerful Mode lets you enjoy instant powerful cooling
• Big bottom flap helps direct cool air across the room
• Balances energy savings and comfort using ECO Mode with A.I. Control
• Energy savings and precise temperature control with Inverter

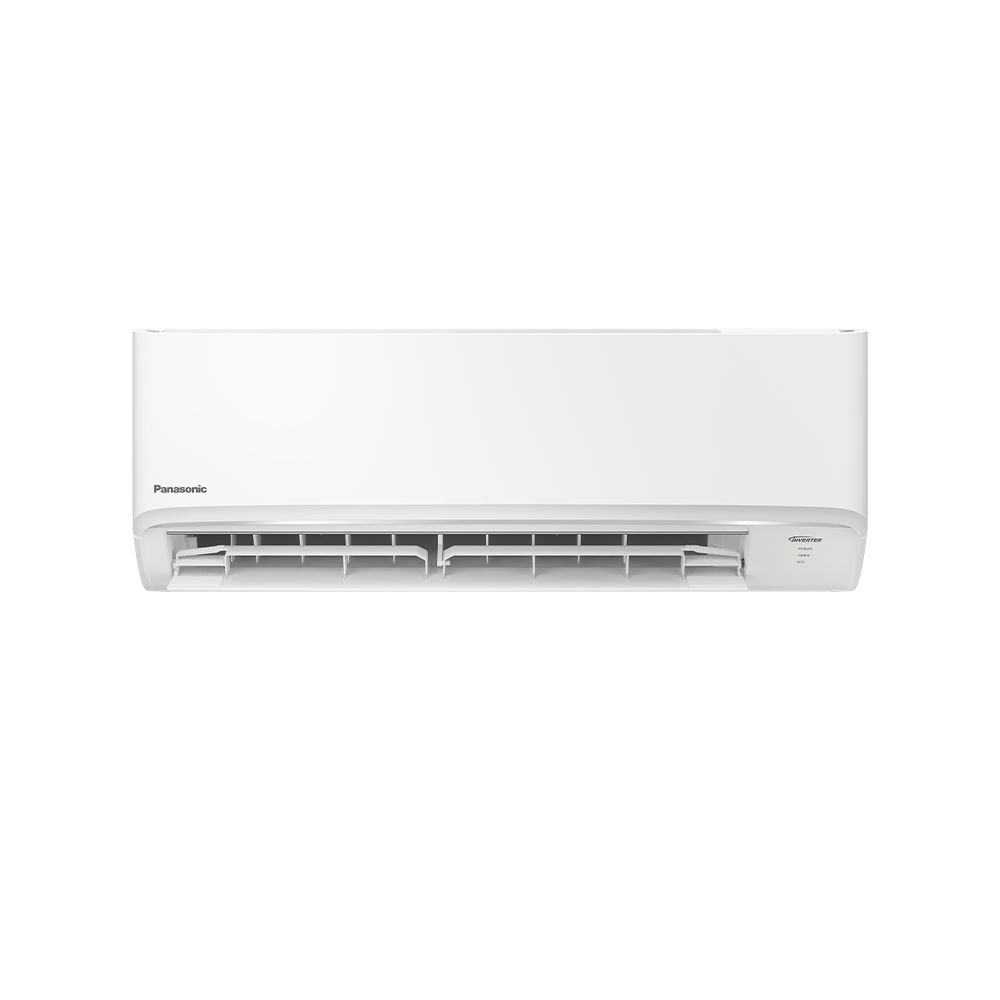

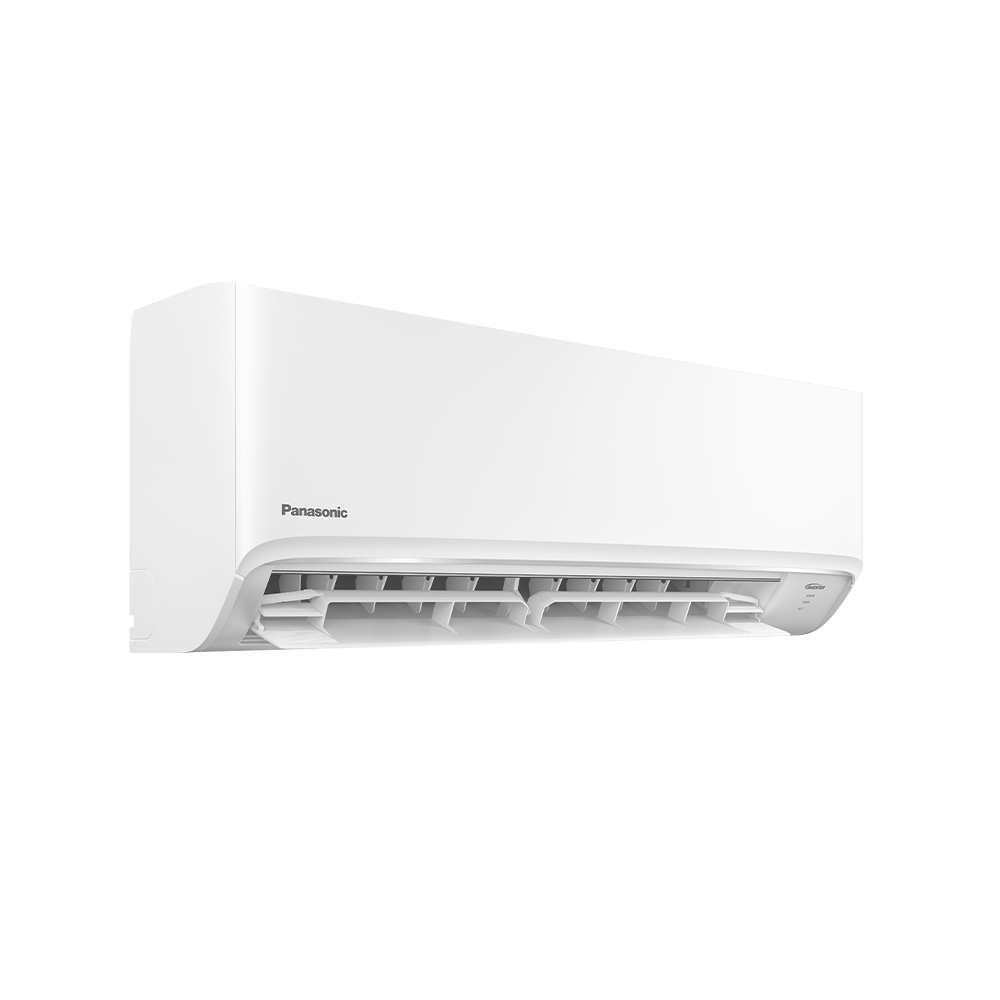

• (Indoor): CS-PU12AKH-1 ; (Outdoor): CU-RU12AKH
• 5 Star Energy Saving* (PU Series 2024)

OVERVIEW

SPECIFICATIONS

Basic Specification

• Model: (Indoor) (50 Hz): CS-PU12AKH-1 ; (Outdoor): CU-RU12AKH
• Cooling Capacity (min-max): 3.52 (1.02-4.10) kW ; 12,000 (3,480-14,000) Btu/h
• EER (min-max): 11.65 (12.65-11.11) Btu/hW ; 3.42 (3.71-3.25) W/W
• CSPF: 5.41W/W
• Electrical Data: Voltage: 220-240 V ; Current: 4.80-4.40 A
• Power Input (min-max): 1,030 (275-1,260) W
• Moisture Removal: 2.0 L/h ; 4.2 Pt/h
• Air Circulation (Indoor): 11.0 m³/min (390 ft³/min) ; (Outdoor): 30.6 m³/min (1,080 ft³/min)
• Noise Level: (Indoor) (H / L / Q-Lo): 40/26/21 dB(A) ; (Outdoor) (H): 48dB(A)
• Dimensions (Indoor) Height: 290 mm (11-7/16 inch): Width: 765 mm (30-1/8 inch): Depth: 214 mm (8-7/16 inch)
• Dimensions (Outdoor) Height: 542 mm (21-11/32 inch): Width: 780 mm (30-23/32 inch): Depth: 289 mm (11-13/32 inch)
• Net Weight: (Indoor): 8 kg (18 lb) ; (Outdoor): 22 kg (49 lb)
• Refrigerant Pipe Diameter: Liquid Side: ø 6.35 mm (1/4 inch) ; Gas Side: ø 9.52 mm (3/8 inch)
• Pipe Extension: Chargeless Pipe Length: 7.5 m ; Maximum Pipe Length: 20 m ; Maximum Elevation Length: 15 m ; Additional Refrigerant Gas*: 10 g/m
• Power Supply: Indoor

Comfort Features

• ECO Mode With A.I.
• Sleep Mode
• Inverter Control
• Powerful Mode
• Soft Dry Operation Mode
• Quiet Mode
• Airflow Direction Control (Up & Down)
• Manual Horizontal Airflow Direction Control

Cleaner Air Features

• Odour Removing Function
• Removable Washable Panel

Convenience Features

• 24-Hour Dual ON & OFF Real Setting Timer

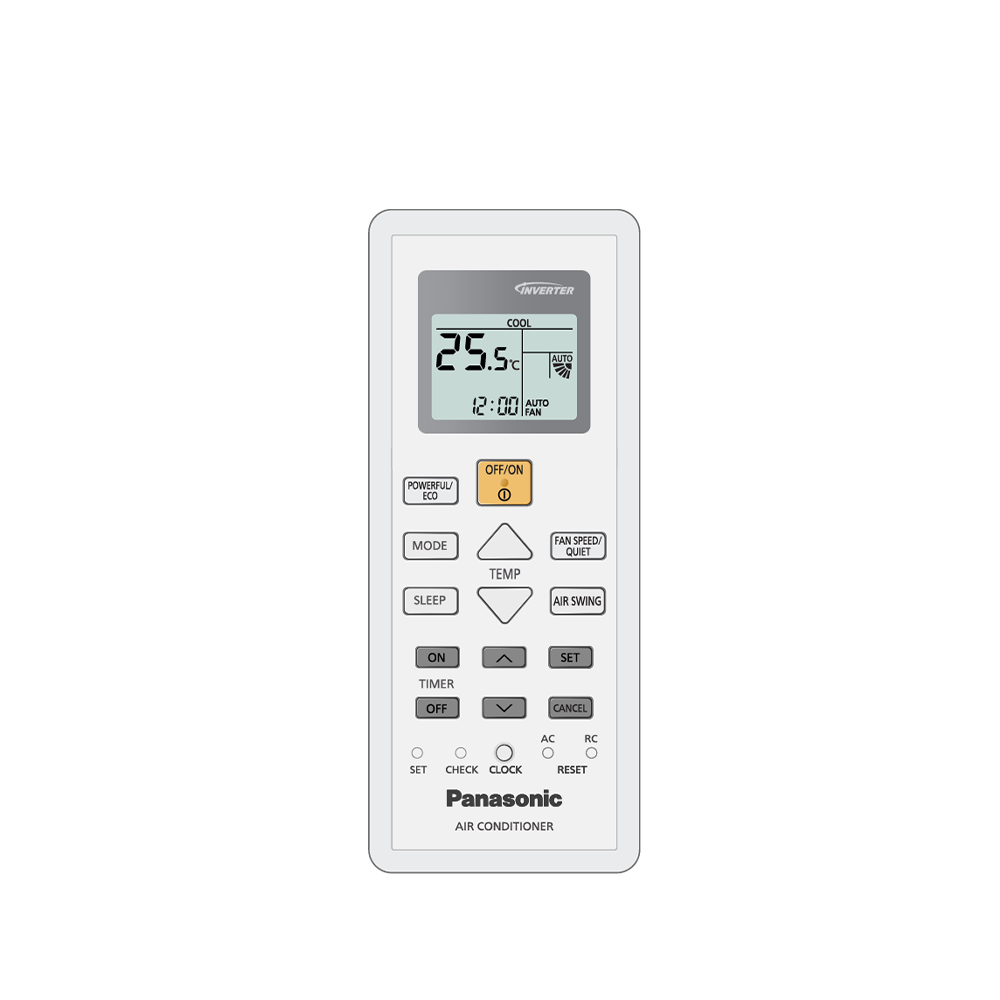

• LCD Wireless Remote Control

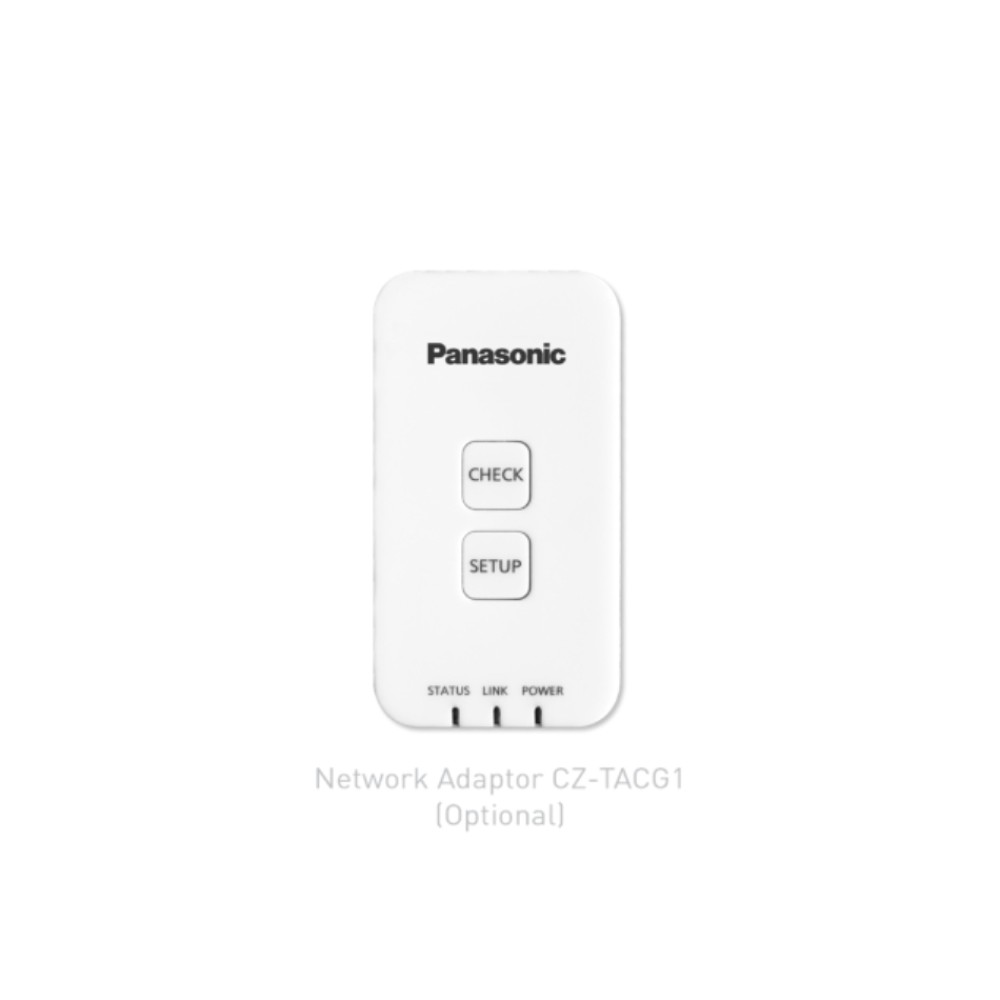

• Wireless LAN Remote Control (For Internet Connection) (Optional)

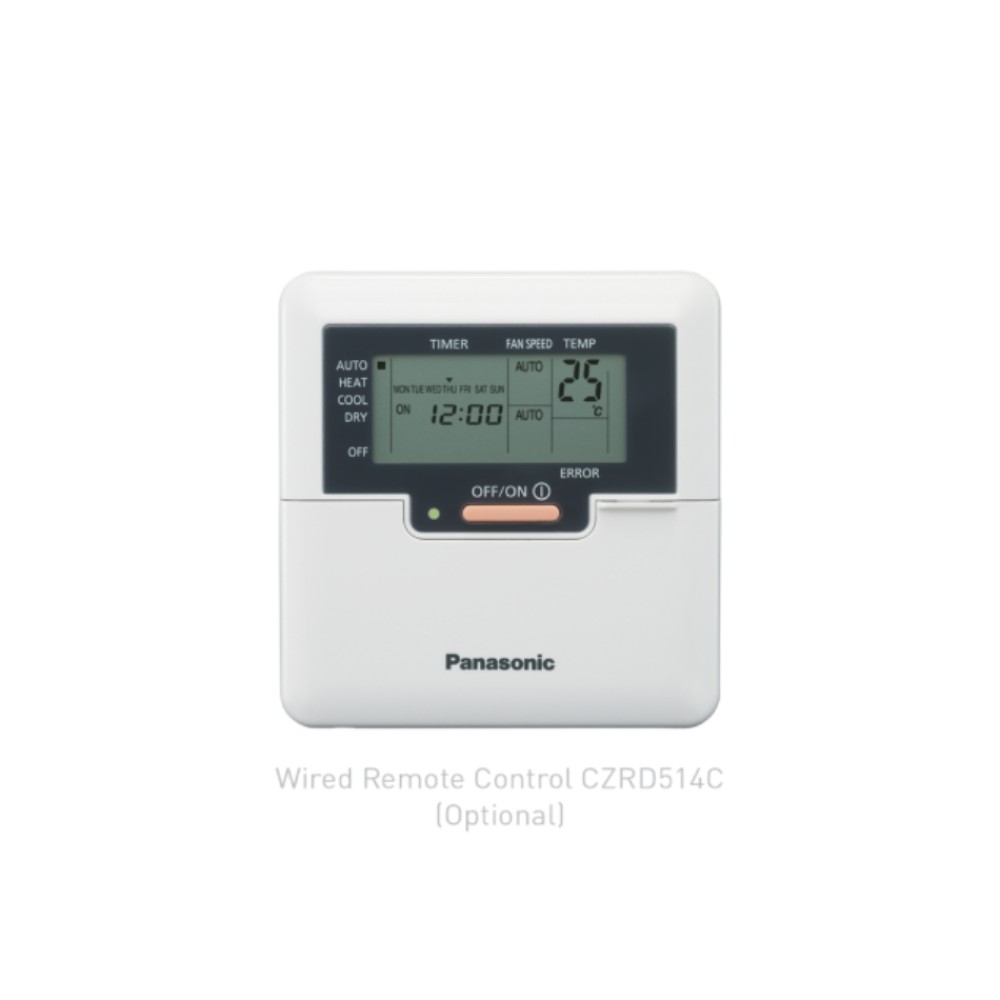

• Wired Remote Control (Optional)

Reliability Features

• Random Auto Restart (32 Restart Patterns)
• Blue Fin Condenser
• Long Piping (max.): 20 m
• Top Panel Maintenance Access
• Self-Diagnostic Function

Note
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
